Product Detail Information

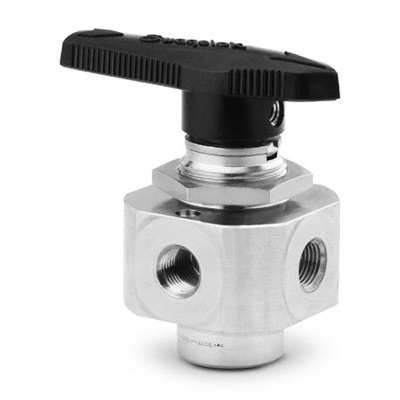

Stainless Steel 1-Piece 40 Series 5-Way Ball Valve, 0.07 Cv, 1/8 in. FNPT
Swagelok
Stainless Steel 1-Piece 40 Series 5-Way Ball Valve, 0.07 Cv, 1/8 in. FNPT
Body Material316 Stainless Steel
Connection 1 Size1/8 in.
Connection 1 TypeFemale NPT
Cleaning ProcessStandard Cleaning and Packaging (SC-10)
Connection 2 Size1/8 in.
Connection 2 TypeFemale NPT
Connection 3 Size1/8 in.
Connection 3 TypeFemale NPT
Connection 4 Size1/8 in.
Connection 4 TypeFemale NPT
Flow PathStandard (5-way)
Max Temperature with Pressure Rating150 F 2500 PSIG /65 C 172 BAR
UNSPSC (SWG01)40141607
Actuator TypeManual
Ball/Stem MaterialStainless Steel
Flow Pattern5-Way, Switching
Handle ColorBlack
Handle StyleLever
LubricantDow M111
O-RingPTFE
Orifice0.062 in /1.6 mm
Ring/Disc MaterialPTFE-Coated Stainless Steel
Room Temperature Pressure Rating2500 PSIG @ 100°F /172 BAR @ 37°C
Service ClassGeneral
TestingTesting according to WS-22
eClass (4.1)37010401
eClass (5.1.4)37010401
eClass (6.0)37-01-04-01
eClass (6.1)37-01-04-01
UNSPSC (10.0)40141607
UNSPSC (11.0501)40141607
UNSPSC (13.0601)40141607
UNSPSC (15.1)40141607
UNSPSC (4.03)40141607
